Taming Gmail Filters with Terraform

Email filters often pile up quietly in Gmail, making it tricky to recall why each one exists or how they interact. I use Terraform to bring order by putting Gmail labels and filters in version control, letting you tweak your inbox setup with confidence. The yamamoto-febc/gmailfilter provider works with both labels and filters, so you can handle everything in one place.

Get the Code

I open-sourced MailPilot on GitHub: 👉 https://github.com/eddyvlad/mailpilot

Clone or fork the repository to start with a working skeleton that already includes common modules. From there you can:

• Remove modules you don’t need
• Add more criterias to each module’s filters
• Add or remove labels and filters in filters.tf or labels.md

This way you can get going quickly without writing everything from scratch.

I called this project MailPilot.

Why Terraform for Gmail?

Terraform is usually for cloud infrastructure, yet it shines whenever you want reproducible, declarative configuration. Treating Gmail settings as code gives you:

• Clarity: quickly find (using 'find in files') and edit instead of hunting through settings pages
• Version history: review past changes and roll back when needed
• Automation: reuse modules to apply the same rules across categories or accounts

Step-by-Step Setup

1. Install the Tools

• Terraform CLI
• or brew tap hashicorp/tap (Hashicorp's official repository) and brew install hashicorp/tap/terraform on macOS
• Google Cloud SDK (gcloud)
• or brew install gcloud-cli on macOS
• (Optional) jq for checking JSON responses
• or brew install jq on macOS

2. Enable the Gmail API and Create OAuth Credentials

1. Visit the Google Cloud Console.
2. Create or pick a project.

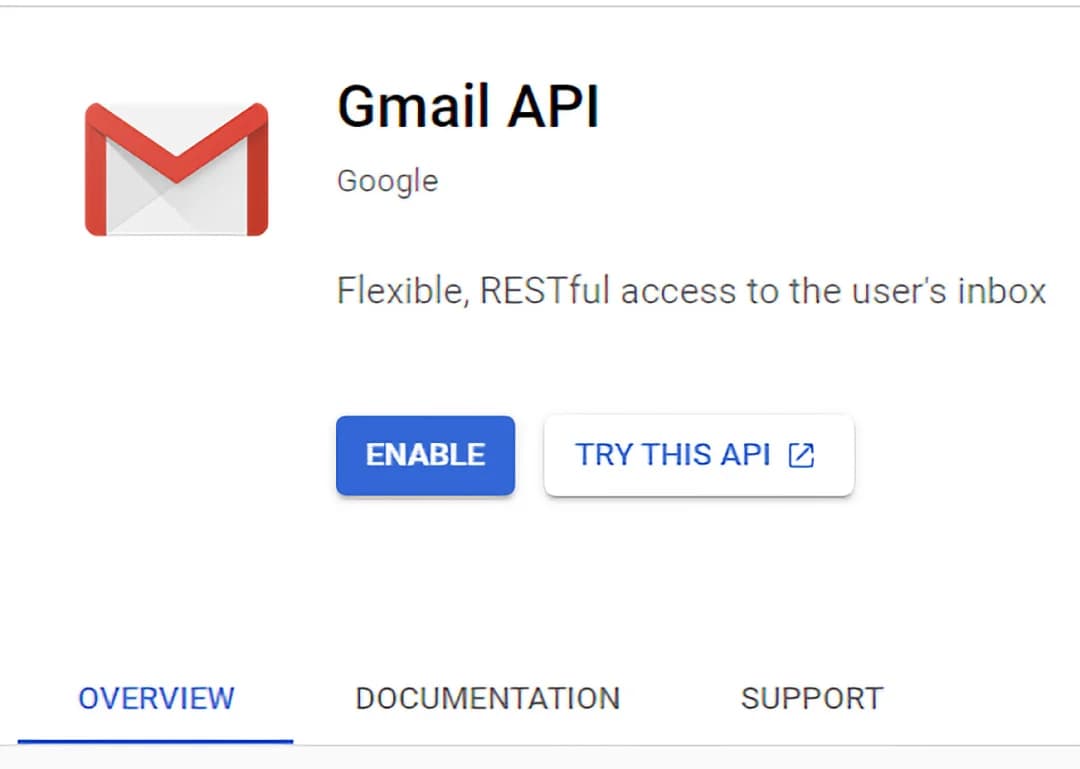

3. Enable Gmail API.
   Official documentation: Enabling the Gmail API.

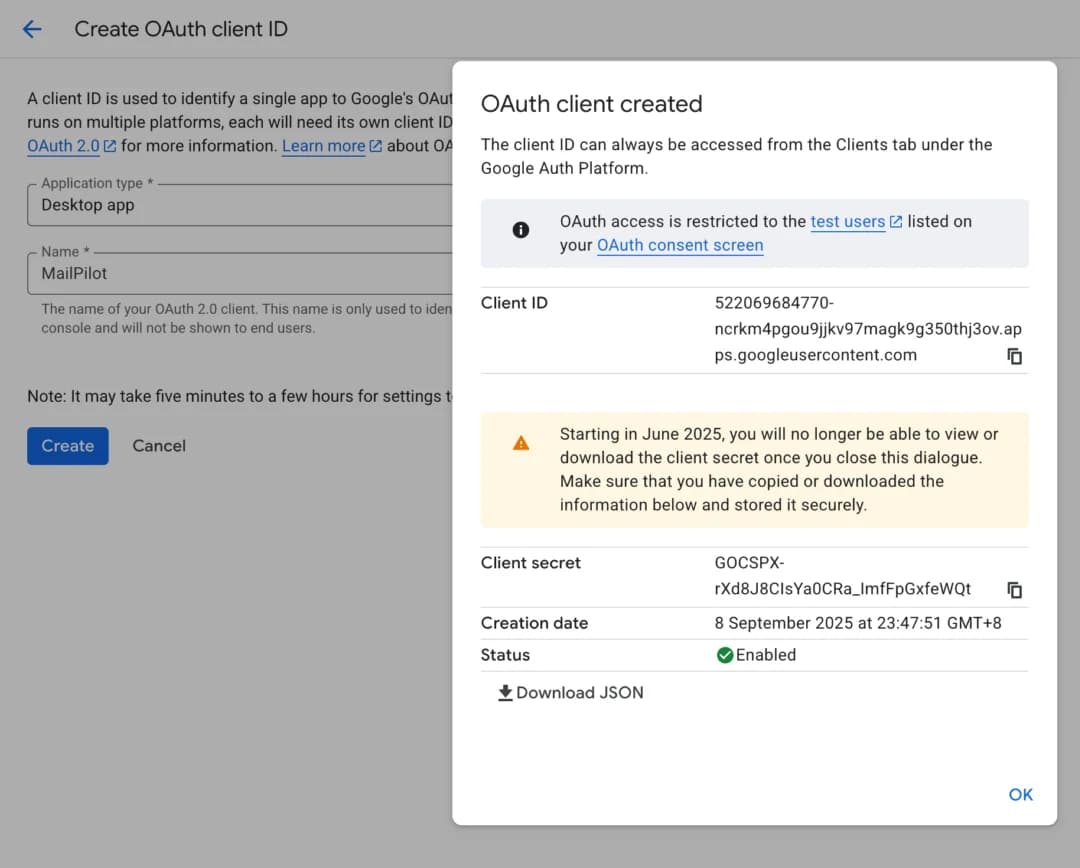

4. Under APIs & Services → Credentials, create an OAuth client of type Desktop app.
5. Download the client_secret_*.json file, store it at ~/.config/mailpilot/client_secret_mailpilot.json, and run chmod 600 to restrict access.

3. Authenticate with Application Default Credentials

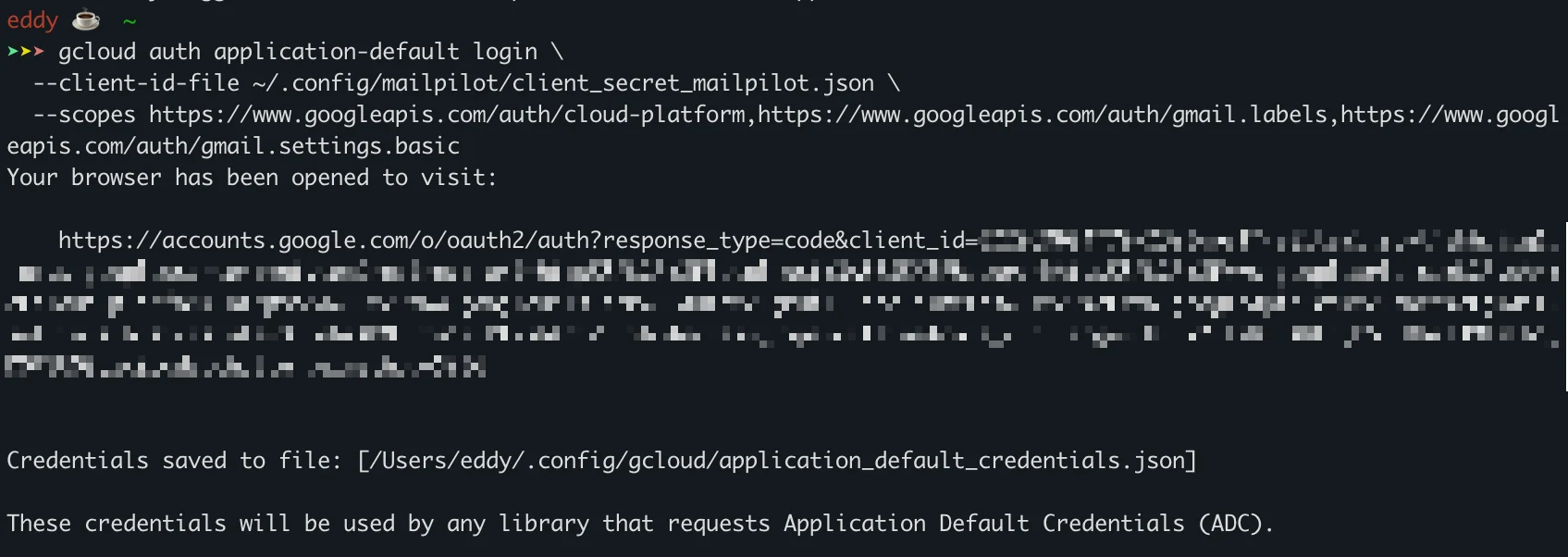

gcloud auth application-default login \
  --client-id-file ~/.config/mailpilot/client_secret_mailpilot.json \
  --scopes https://www.googleapis.com/auth/cloud-platform,https://www.googleapis.com/auth/gmail.labels,https://www.googleapis.com/auth/gmail.settings.basic

This opens a browser for consent and saves your tokens locally. ⚠️ Tokens usually expire after seven days. Re-run this command whenever you want to apply new changes after that.

Quick sanity check:

TOKEN="$(gcloud auth application-default print-access-token)"
curl -H "Authorization: Bearer $TOKEN" \
  https://gmail.googleapis.com/gmail/v1/users/me/labels

You should see JSON listing existing labels.

4. Scaffold the Terraform Project

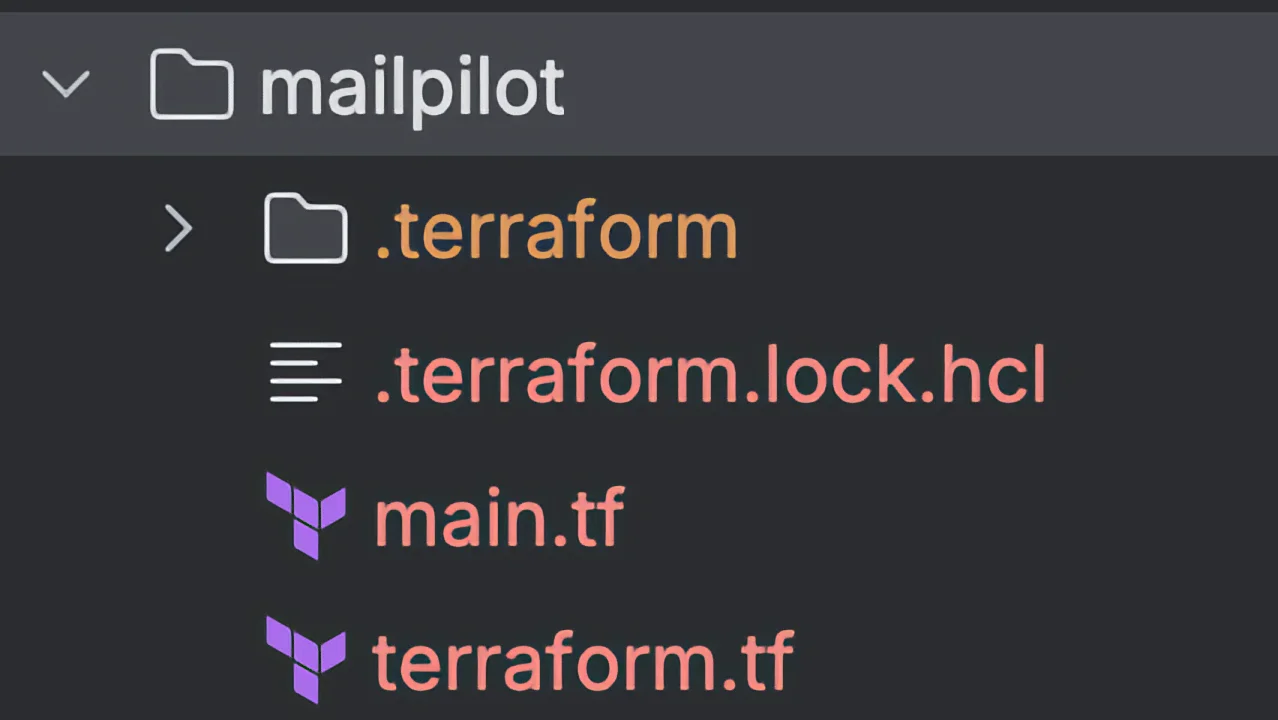

mkdir mailpilot
cd mailpilot
nano main.tf   # or use your preferred editor

Paste in a minimal configuration:

# terraform.tf
terraform {
  required_providers {
    gmailfilter = {
      source  = "yamamoto-febc/gmailfilter"
      version = "1.1.0"
    }
  }
}

provider "gmailfilter" {}

# main.tf
resource "gmailfilter_label" "newsletters" {
  name = "Newsletters"
}

resource "gmailfilter_filter" "nl_archive" {
  criteria {
    from           = "news@newsletter.example"
    exclude_chats  = false
    has_attachment = false
  }
  action {
    add_label_ids    = [gmailfilter_label.newsletters.id]
    remove_label_ids = ["INBOX", "SPAM"]
  }
}

This file declares the Gmail provider, a label named Newsletters, and a filter that tags and archives emails from news@newsletter.example. Terraform stores state locally in terraform.tfstate.

5. Initialize and Apply

terraform init

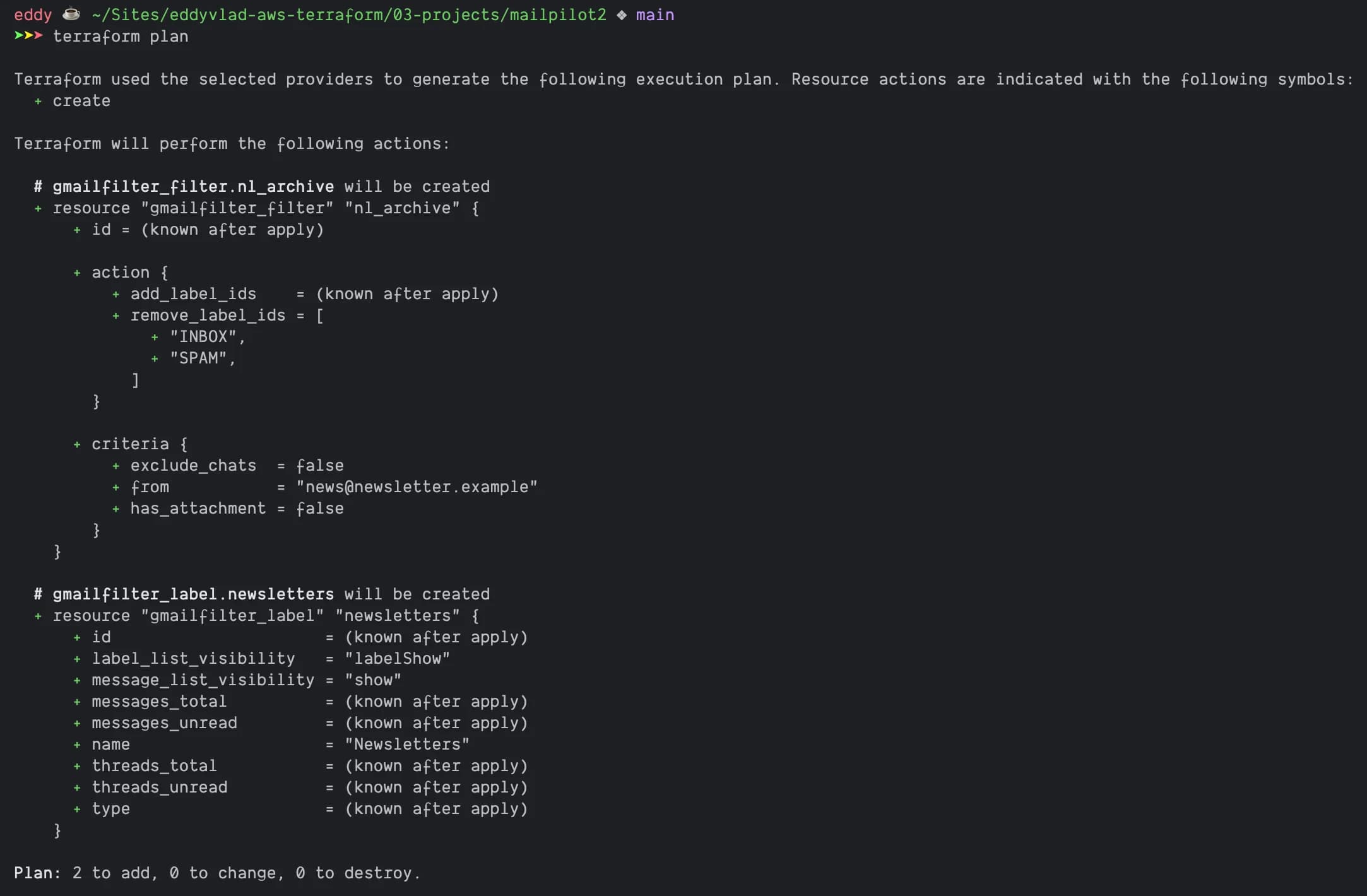

terraform plan
terraform apply

• terraform init downloads the provider
• terraform plan previews changes
• terraform apply enforces the configuration after you confirm with yes

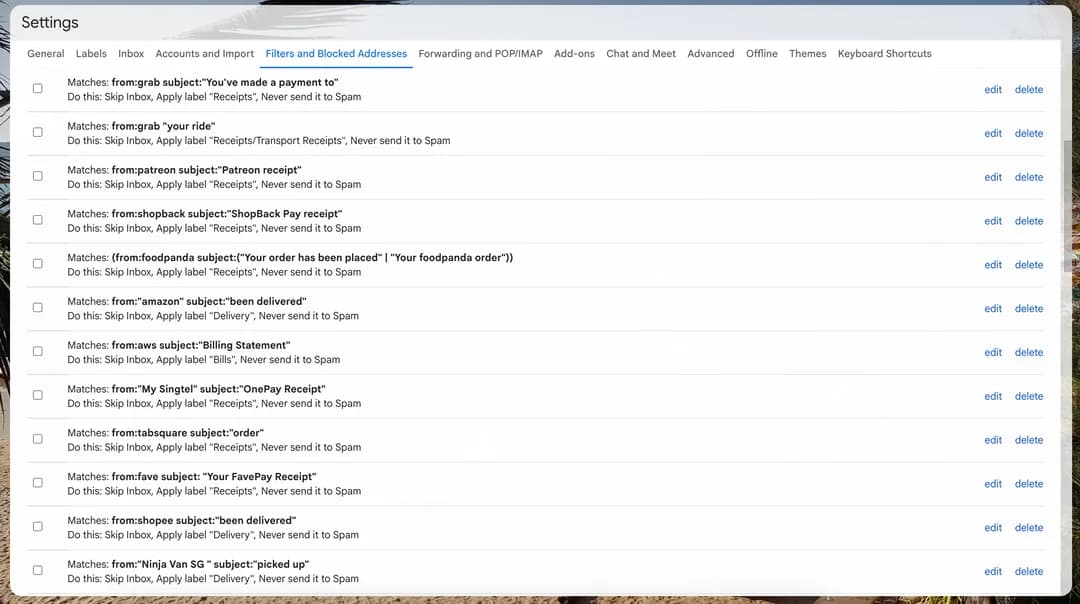

Check Gmail afterward to see the new label and filter in action.

Going Further with Modules and Loops

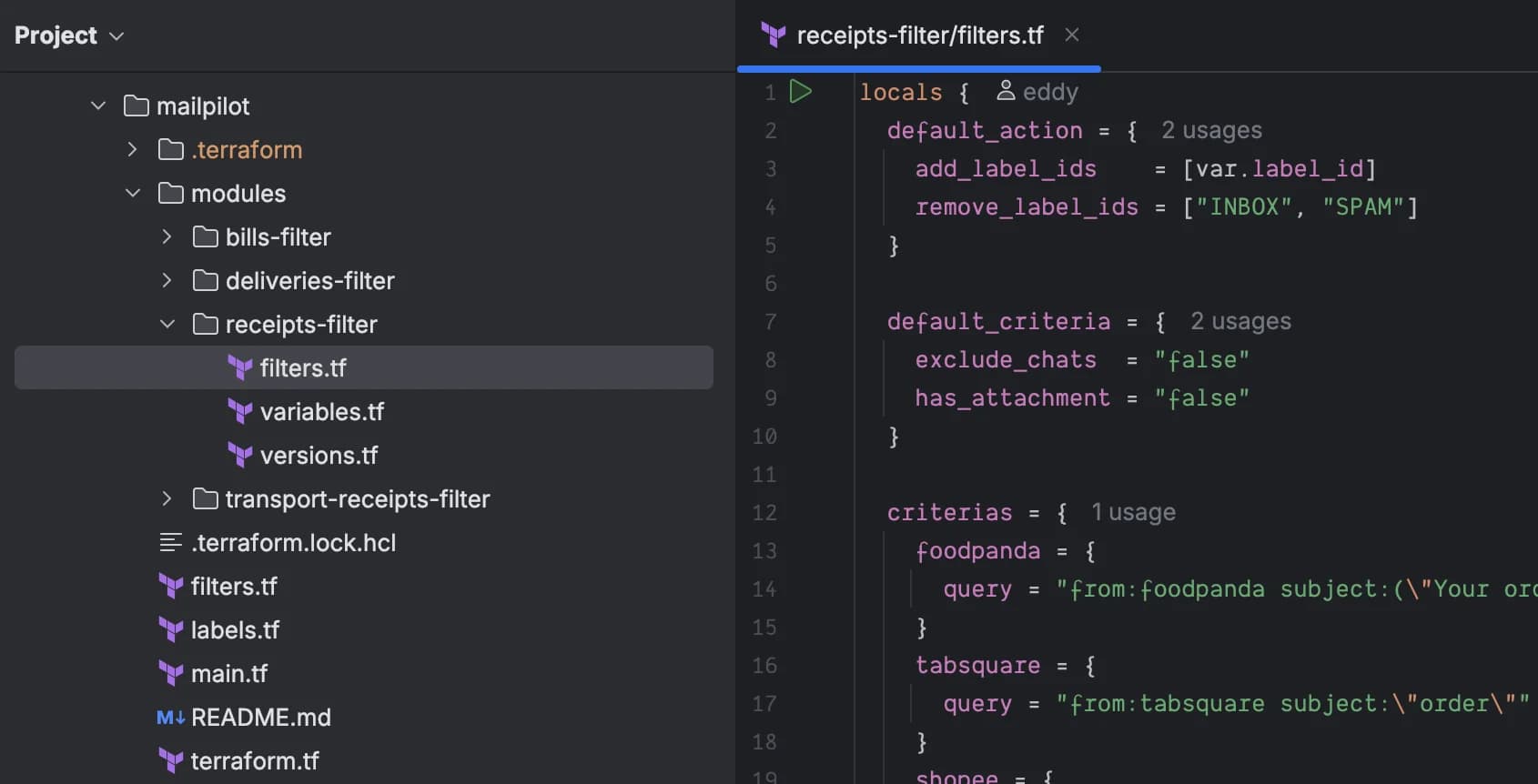

Once you are comfortable with the basics, you can modularize recurring rules. For example, MailPilot’s receipts module uses a for_each loop over a map of senders:

# modules/receipts/filters.tf
locals {
  criterias = {
    shopee = { query = "from:shopee subject:\"Your payment has been confirmed\"" }
    github = { query = "from:github subject:\"Payment Receipt\"" }
    # more entries...
  }
}

resource "gmailfilter_filter" "receipts" {
  for_each = local.criterias

  action {
    add_label_ids    = [var.label_id]
    remove_label_ids = ["INBOX", "SPAM"]
  }

  criteria {
    exclude_chats  = "false"
    has_attachment = "false"
    query          = lookup(each.value, "query", null)
  }
}

# modules/receipts/variables.tf
variable "label_id" {
  type        = string
  description = "ID of the Receipts label"
}

# modules/receipts/versions.tf
terraform {
  required_providers {
    gmailfilter = {
      source  = "yamamoto-febc/gmailfilter"
      version = "1.1.0"
    }
  }
}

# main.tf
module "receipts_filter" {
  source   = "./modules/receipts-filter"
  label_id = gmailfilter_label.receipts.id
}

Adding a new sender is as simple as appending another entry to criterias. Terraform generates one filter per entry, keeping the configuration concise and consistent.

The same provider also manages labels, so you can create nested structures like Receipts/Transport without leaving your editor.

Final Thoughts

MailPilot shows that even a personal inbox can benefit from infrastructure as code. With a bit of Terraform and the Gmail provider, you can:

• Track Gmail labels and filters in version control
• Reapply your setup on a new account or after major changes
• Scale gracefully using modules and loops for patterns like receipts or bills

If your Gmail filters feel out of control, try codifying them. Start with a single label and filter; once you see how approachable it is, you may find yourself managing email as if it were any other part of your infrastructure. With MailPilot, your Gmail filters become readable, shareable, and maintainable.
